SINGLE-WALL | POLYETHYLENE PIPE

SingleCorr

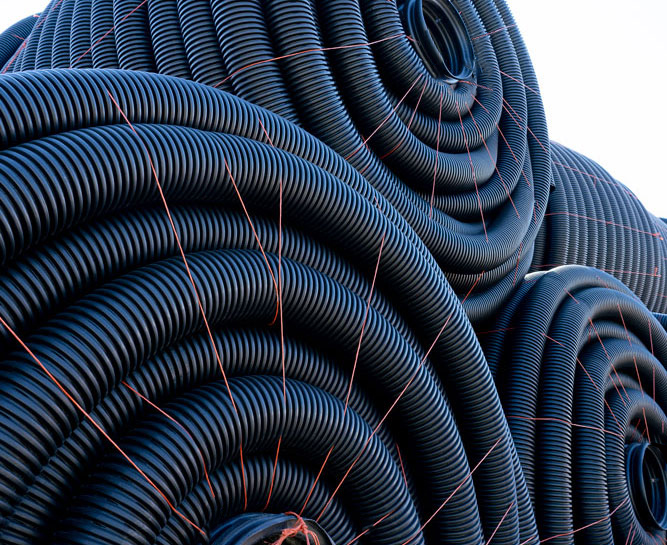

SingleCorr is a single-wall pipe that offers durability and flexibility. With the widest range of sizes on the market and numerous packaging options, you’ll find the perfect fit for your agricultural or heavy residential use project.

The Power To Choose

single-wall pipe
Detail Arrow

SIZES

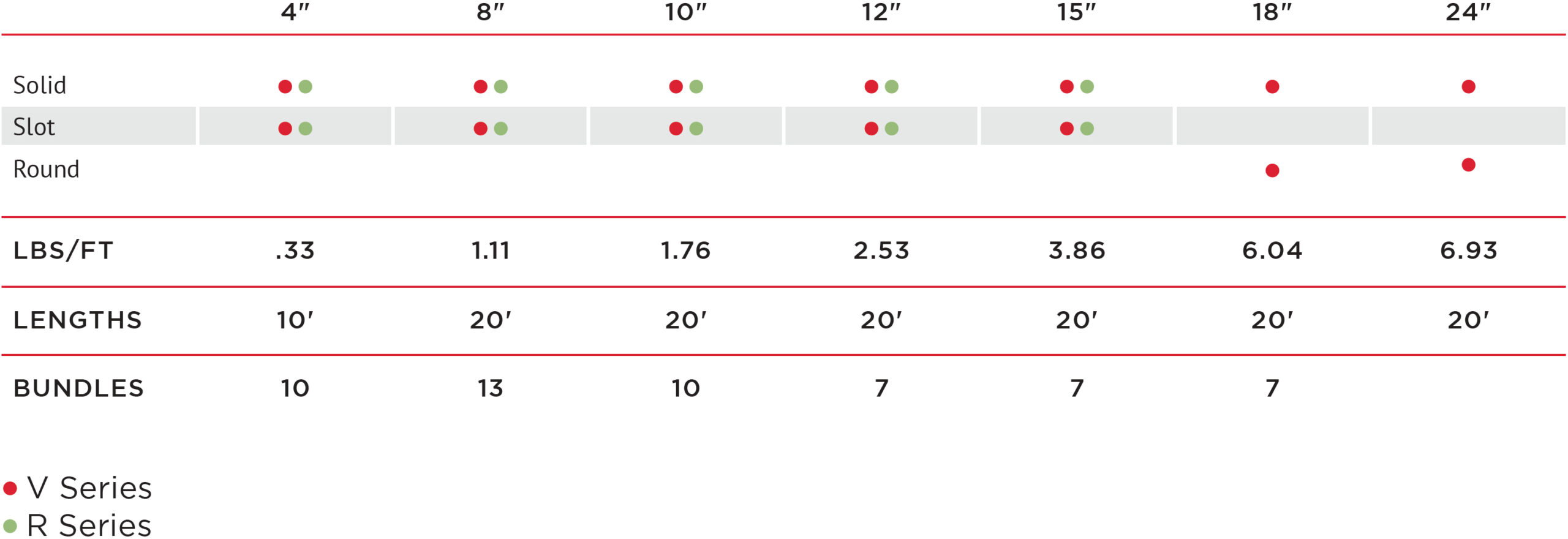

STICKS

SingleCorr Sticks 8.24.22

Notes:

Please contact the sales team for availability.

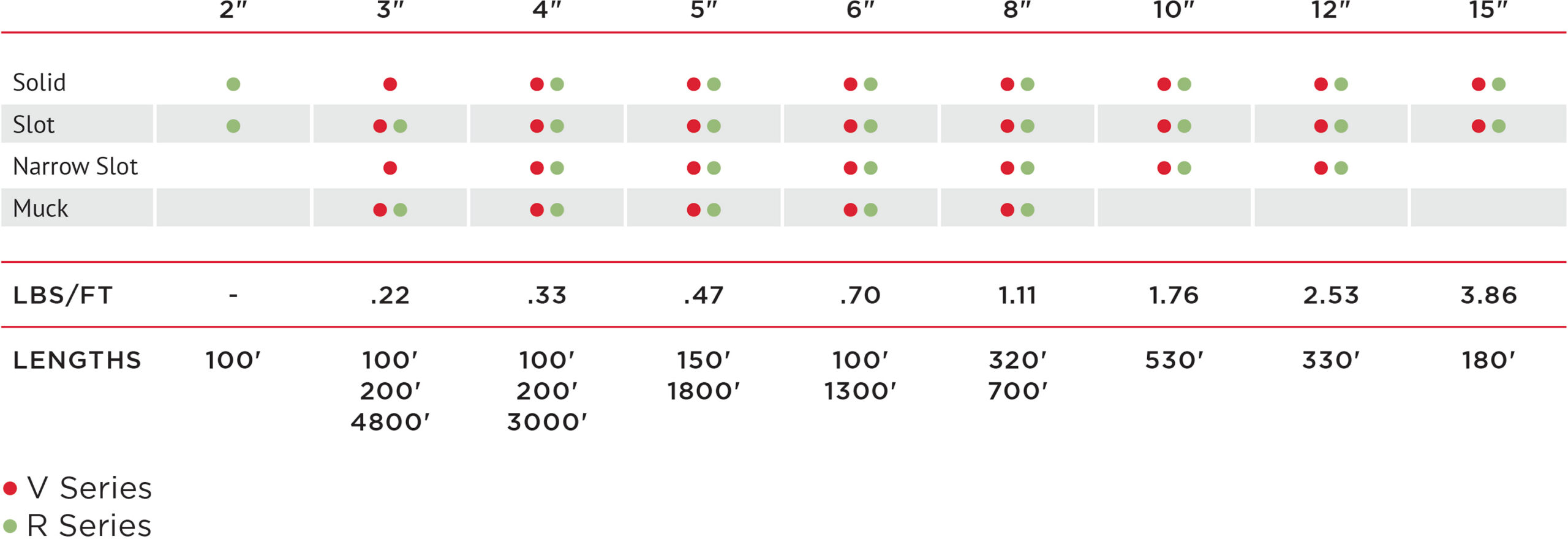

COILS & MAXIS

SingleCorr Maxis 8.24.22

Notes:

NIT filter available by special order on all coils except solid. The following diameters are available in white coils: 3″, 4″, 5″, 6″, 8″, 10″ and 12″.

SINGLE-WALL SELECTION CHART

Dimensions & Specifications:

  • 3″–8″ Maxi Single-Wall Footages are wound up on a 15″ core of corrugated tubing: core must be returned to Fratco
  • 10″, 12″ and 15″ Maxi Single-Wall Footages have a center hole of 24″
  • All Maxi-Coils measure approximately 7.5′ wide
  • 3″, 4″, 5″ and 8″ x 700′ Maxi Single-Wall Footages measure approximately 8.5′ in diameter
  • 6″ Maxi Single-Wall Footages measure approximately 9′ in diameter
  • 10″ and 12″ Maxi Single-Wall Footages measure approximately 10′ in diameter
  • Approximate maximum weight of Maxi Single-Wall Footages is 1,000 lbs. depending on the size



Notes:

Wraps are numbered from the inside out.

SIZES

STICKS

4″

8″

10″

12″

15″

18″

24″

Solid

Solid

Round

LBS/FT

.33

1.11

1.76

2.53

3.86

6.04

6.93

LENGTHS

10′

20′

20′

20′

20′

20′

20′

BUNDLES

10

13

10

7

7

7

  • V Series
  • R Series

Notes:

Please contact the sales team for availability.

COILS & MAXIS

2″

3″

4″

5″

6″

8″

10″

12″

15″

Solid

Slot

Narrow Slot

Muck

LBS / FT

.22

.33

.47

.70

1.11

1.76

2.53

3.86

LENGTHS

100′

100′

200′

4800′

100′

200′

3000′

150′

1800′

100′

1300′

320′

700′

530′

330′

180′

  • V Series
  • R Series

Notes:

NIT filter available by special order on all coils except solid. The following diameters are available in white coils: 3″, 4″, 5″, 6″, 8″, 10″ and 12″.

SINGLE-WALL SELECTION CHART

WRAP

3″

4″

5″

6″

8″*

10″

12″

15″

1

155′

135′

90′

75′

65′

80′

70′

65′

2

195′

145′

125′

110′

95′

115′

110′

115′

3

200′

190′

165′

155′

145′

150′

150′

4

260′

215′

200′

185′

175′

185′

5

300′

285′

250′

225′

220′

6

330′

295′

280′

250′

7

370′

350′

330′

300′

8

410′

430′

360′

9

450′

460′

10

490′

495′

11

520′

12

550′

13

570′

TOTAL LENGTH

4800′

3000′

1800′

1300′

700′

530′

330′

180′

*480′ Maxi Single-Wall Footage is 4 wraps, 305′ maxi coil is 3 wraps.

Dimensions & Specifications:

  • 3″–8″ Maxi Single-Wall Footages are wound up on a 15″ core of corrugated tubing: core must be returned to Fratco
  • 10″, 12″ and 15″ Maxi Single-Wall Footages have a center hole of 24″
  • All Maxi-Coils measure approximately 7.5′ wide
  • 3″, 4″, 5″ and 8″ x 700′ Maxi Single-Wall Footages measure approximately 8.5′ in diameter
  • 6″ Maxi Single-Wall Footages measure approximately 9′ in diameter
  • 10″ and 12″ Maxi Single-Wall Footages measure approximately 10′ in diameter
  • Approximate maximum weight of Maxi Single-Wall Footages is 1,000 lbs. depending on the size



Notes:

Wraps are numbered from the inside out.

SPECIFICATIONS

AdobeStock_437900857 [Converted]-08

PERFECT PICKINGS

More than 75 possible combinations means we have pipe perfect for any project

AdobeStock_437900857 [Converted]-03

MATERIAL OPTIONS

Available in V Series and R Series resin to best suit your needs

DesignLifeIcon-02

100-YEAR DESIGN LIFE

Built to weather the test of time and the elements
